 پیاده سازی پرینتر Stylus Photo 820 اپسون
پیاده سازی پرینتر Stylus Photo 820 اپسون

مرحله 1 پیاده سازی پرینتر:

  • این راهنما در مورد پیاده سازی پرینتر رنگی فوتو استیلوس 820 اپسون می باشد.

This is a teardown of the Epson Stylus 820 Photo color printer.

مرحله 2

  • کارتریج های جوهر قابل تعویض هستند که نشانه خوبی می باشد.

The ink cartridges are replaceable. That is a good sign.The ink cartridges are replaceable. That is a good sign.

مرحله 3

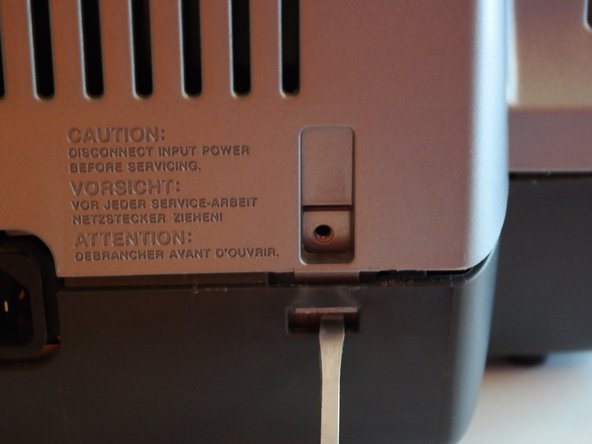

  • فقط یک پیچ در بیرون قرار دارد.
  • پس از برداشتن این پیچ، سه دکمه در قسمت پشت را می توان آزاد کرد.

Only one screw on the outside. That looks like a good sign.After removing the screw, the three tabs on the back can be unhooked.After removing the screw, the three tabs on the back can be unhooked.

مرحله 4

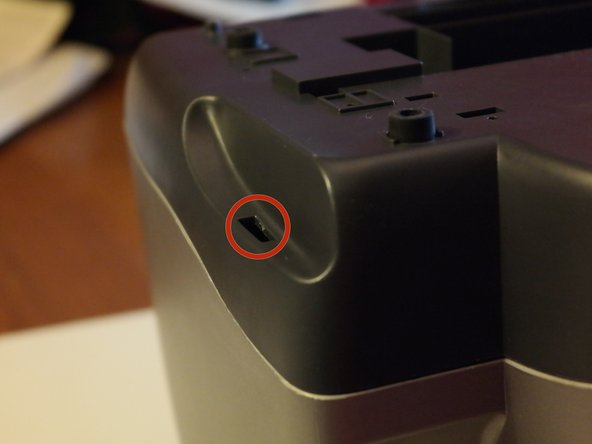

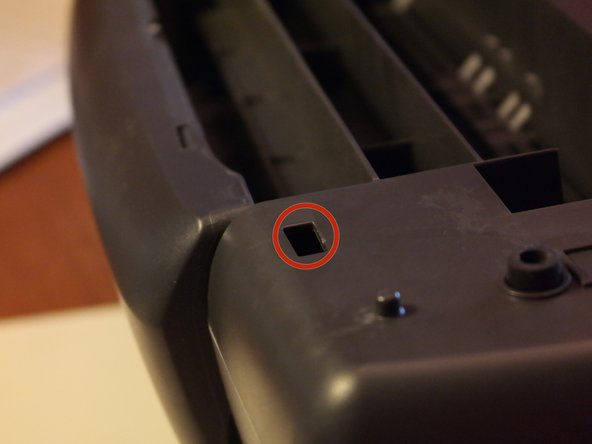

  • شیارهای قسمت پایین پرینتر چیست؟
  • جواب: طبق راهنمای فعلی iFixit، این شیاری منجر به دسترسی به دکمه های نگهدارنده کاور می شوند.

باز کردن این پرینتر سخت تر از آنچیزی است که بنظر می رسد.

What are these strange slots on the bottom of the printer?Answer: according to the existing iFixit guide, they allow access to the tabs holding the cover in place.

مرحله 5

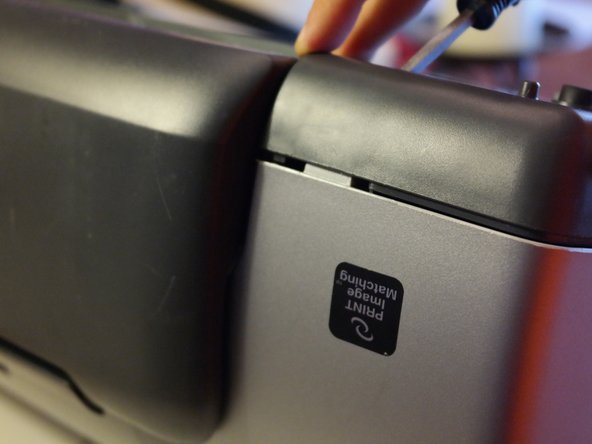

  • اکنون باید دو دکمه را آزاد کنید.
  • کیس باید جدا شود.

Now it is time to unlatch two more tabs.The case has started to separate.The case has started to separate.

مرحله 6

  • این قطعه پلاستیکی باید از پورت USB در هنگام برداشتن کیس، بلند شود.

It was necessary to pry this piece of plastic away from the USB port while removing the case.

مرحله 7

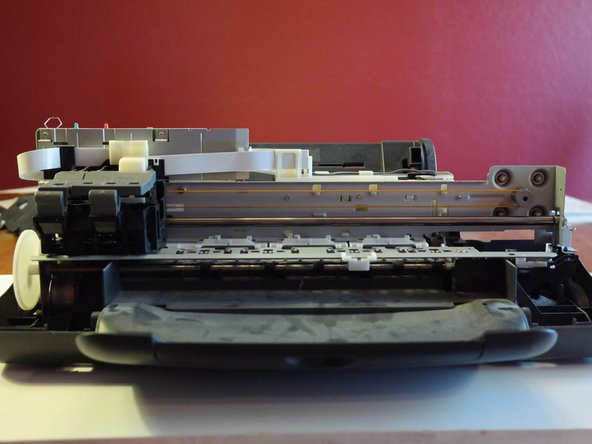

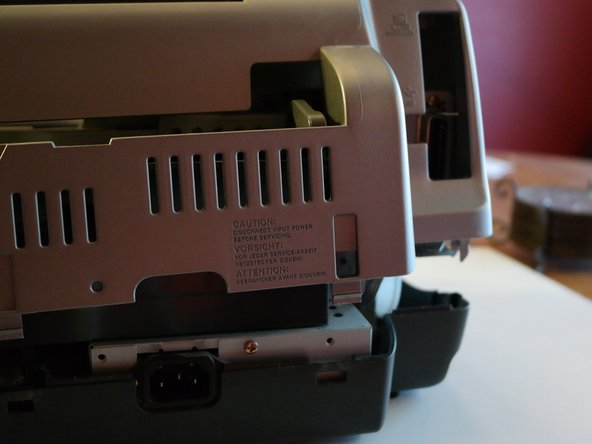

  • در نهایت کاور برداشته می شود.
  • قطعات زیادی پس از برداشتن کاور دیده می شوند.

The cover is finally off!Not much more can be seen by taking off the cover.

مرحله 8

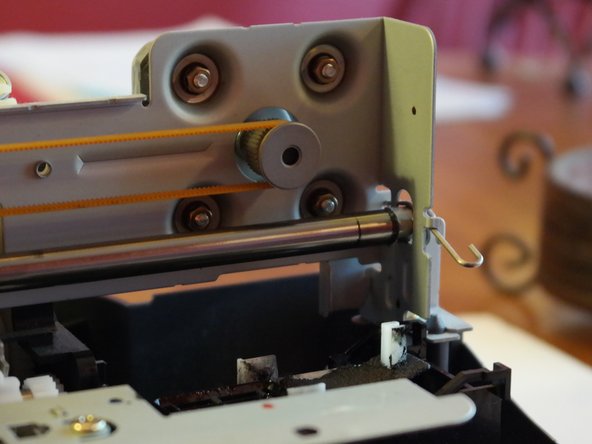

  • مرحله بعدی: موتور استپر (پله ای).

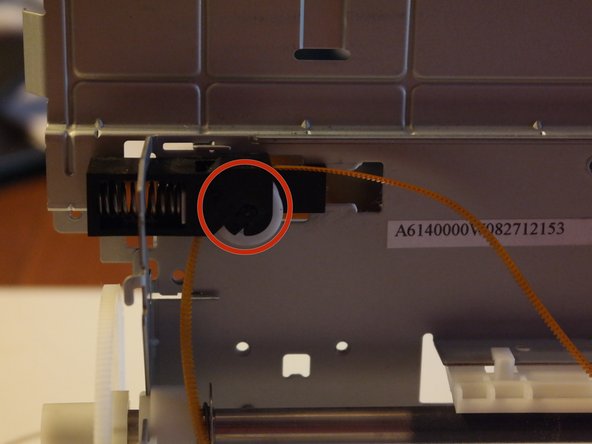

  • تسمه درایو می تواند به آسانی با فشار دادن یک کشش دهنده در سمت دیگر پرینتر برداشته شود. +1 برای قابلیت اطمینان است.

Next step: the stepper motor.The drive belt can be easily removed by pressing on a tensioner on the other side of the printer. +1 for reparability!

مرحله 9

  • پس از برداشتن 4 پیچ، موتور استپر خارج می شود.

After removing 4 screws, the stepper motor comes out.After removing 4 screws, the stepper motor comes out.

مرحله 10

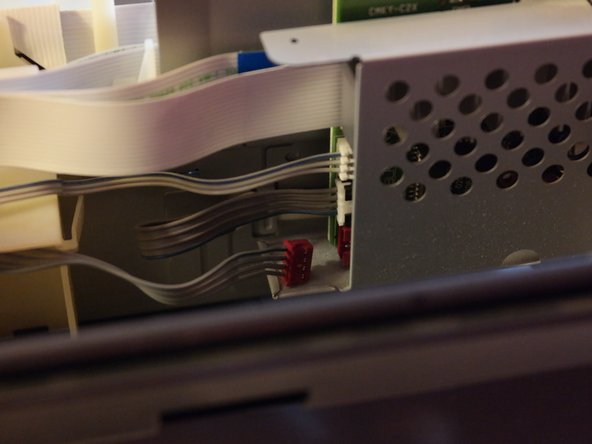

  • کابل موتور استپر از طریق یک سری دکمه های پلاستیکی که آن را نگهداشته است دنبال می شود.
  • در نهایت به برد منطقی (مخفی) وصل می شود.

The stepper motor cable is routed through a series of plastic tabs that hold it down.It eventually connects to the (hidden) logic board.

مرحله 11

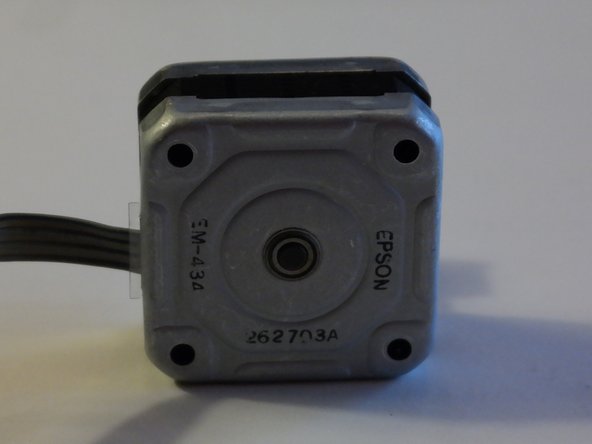

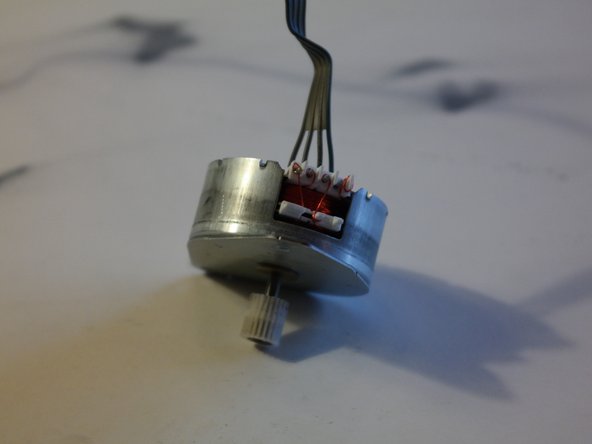

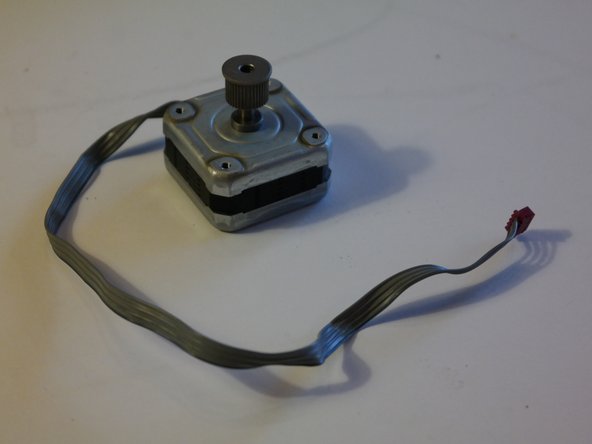

  • نگاه عمیق تر به موتور استپر.

اگر ولتاژ این موتور را تشخیص می دهید، لطفا نظر بدهید.

A closer look at the stepper motor.If you know what voltage this motor runs at or its pinout, please leave a comment!

مرحله 12

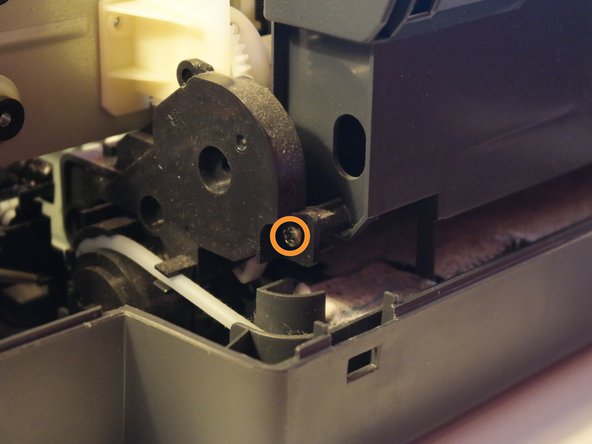

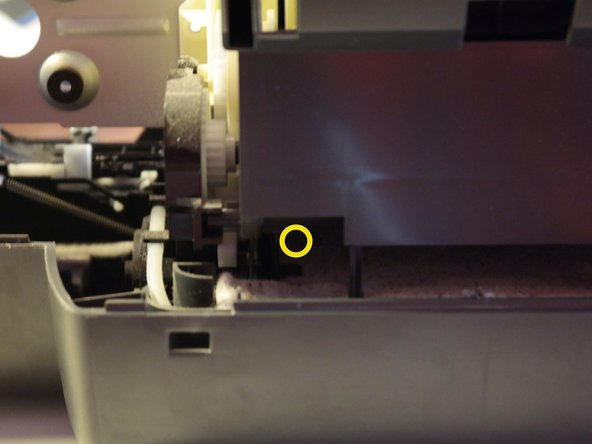

به منظور دسترسی به سینی کاغذ، 3 پیچ باید برداشته شوند.

  • یک پیچ در محل روشن
  • یک پیچ در محل نیمه روشن
  • یک پیچ در محل تاریک
بخوانید  برطرف کردن کدهای خطای اسپویلر پرینتر اپسون

In order to access the paper tray, 3 screws must be removed.One in an obvious place.One in a less-obvious place.

مرحله 13

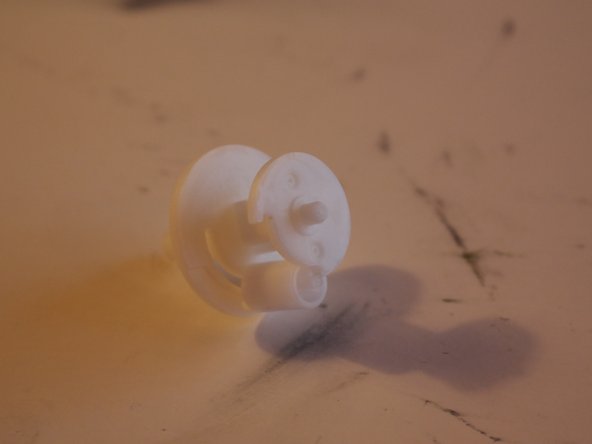

  • سینی کاغذ برداشته شده است.
  • این نمونه داخل سینی کاغذ دیده می شود.

The paper tray has been removed.This magnificent specimen was found deep inside the paper tray.This magnificent specimen was found deep inside the paper tray.

مرحله 14

  • با نگاهی عمیق تر متوجه می شیود که زیر سینی کاغذ چیست.

در حالیکه این پد در پایین مضر نمی باشد، روی آن کار نکنید. اگر نیمی خواهید بدانید که داخلی پرینتر چه چیزی مخفی شده است، به مرحله بعدی بروید.

A close look at what is behind the paper tray.

مرحله 15

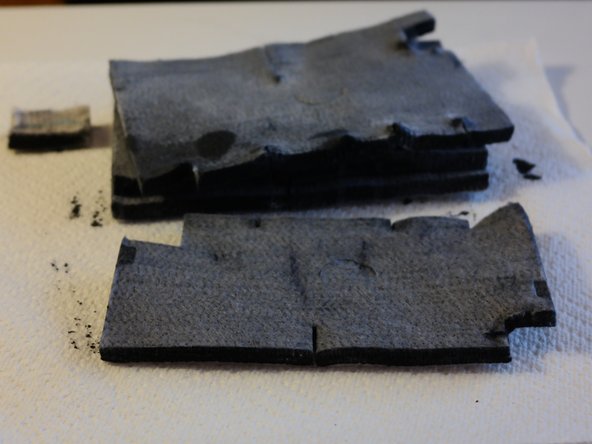

  • شی پایین آخرین تصویر 5 لایه از پد جاذب است که شامل جوهر می باشد که پرینتر هدر داده است در حالیکه نازل های آن تمیز هستند.

The object at the bottom of the last photo was 5 layers of absorbent padding to contain all the ink that the printer has wasted while cleaning its nozzles, in this case almost 8 years of ink.

مرحله 16

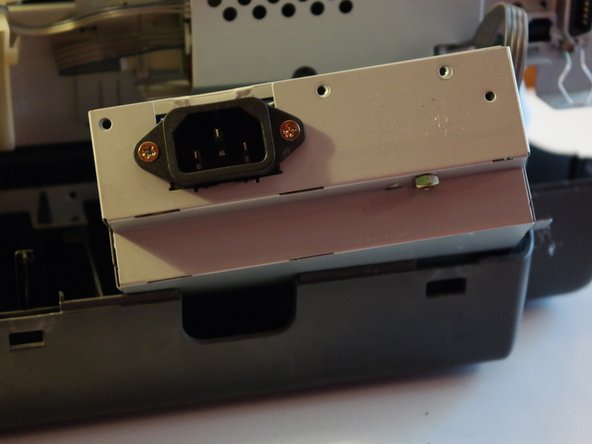

  • منبع برق با 3 پیچ محکم کرده است اما بنظر می رسد دو پیچ جلو دیده نمی شوند.

The power supply is held in place by 3 screws, but it seems to be missing two on the front.The power supply is held in place by 3 screws, but it seems to be missing two on the front.

مرحله 17

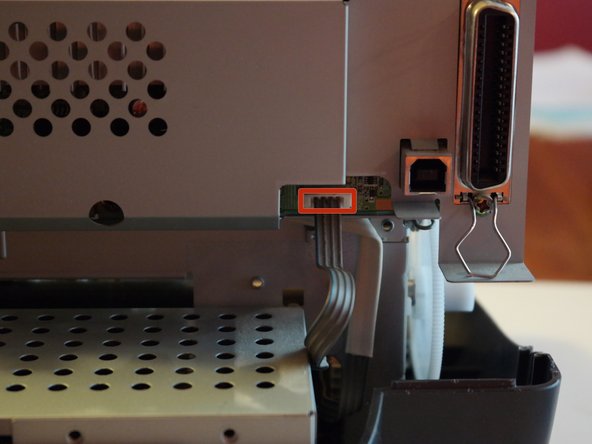

  • منبع برق با 4 پیچ نازک به برد اصلی وصل است.

The power supply is connected to the main board by 4 surprisingly thin wires.The power supply is connected to the main board by 4 surprisingly thin wires.

مرحله 18

داخل منبع برق:

  • خازن بزرگ (در دایره نارنجی مشخص شده) می تواند تا 400 ولت را نگهدارد که درصورت تماس با آن در زمان اتصال آن، به شما آسیب می رساند.

The inside of the power supply.

مرحله 19

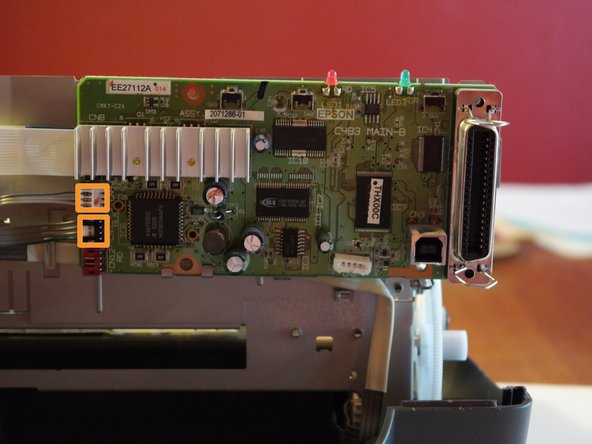

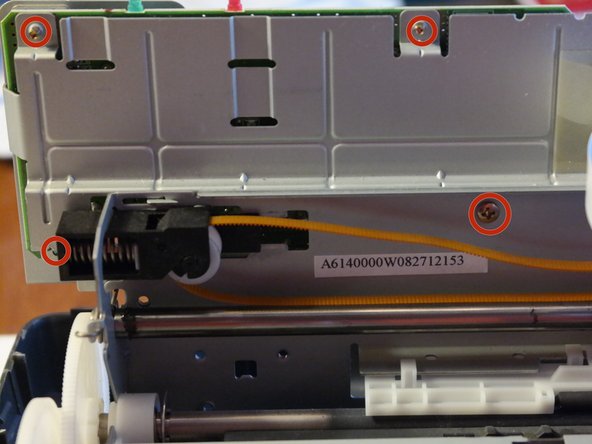

  • روکش برد منطقی با 4 پیچ محکم شده است.
  • دو کابل به برد منطقی وصل هستند.

The logic board's shielding is held in place with 4 screws.Two cables remain connected to the logic board.

مرحله 20

  • سینک حرارتی با این پیچ ها به برد منطقی متصل است.
  • کابل نواری بزرگ هد پرینت با دو کانکتور در برد منطقی، یک کانکتور در هر طرف، متصل است.

The heatsink is attached to the logic board by these screws.The large dual ribbon cable for the printhead attaches to two connectors on the logic board, one on each side.The large dual ribbon cable for the printhead attaches to two connectors on the logic board, one on each side.

مرحله 21

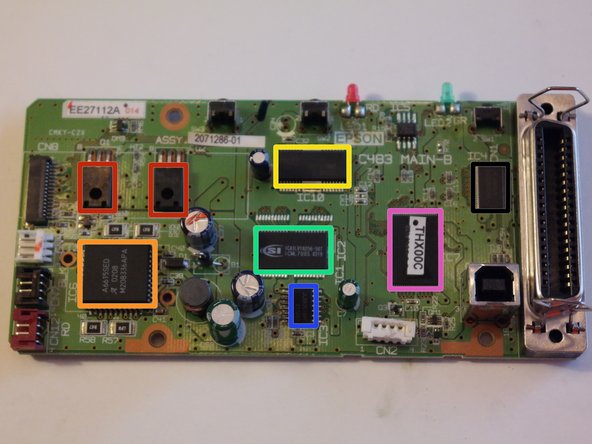

  • تراشه های روی برد منطقی:
  • ترانزیستورهای C5694 و A2037
  • درایور موتور استپر A6615SED
  • تراشه اپسون 219A254UN
  • رم پویا 16 بیت * 256 K IC41LV16256
  • رگولاتور ترمینال باس M62510FP
  • فلش مموری CMOS 8mBit 29LV400TC
  • گیرنده IEEE 1284 پر سرعت LVCZ161284A

The chips on the logic board.

مرحله 22

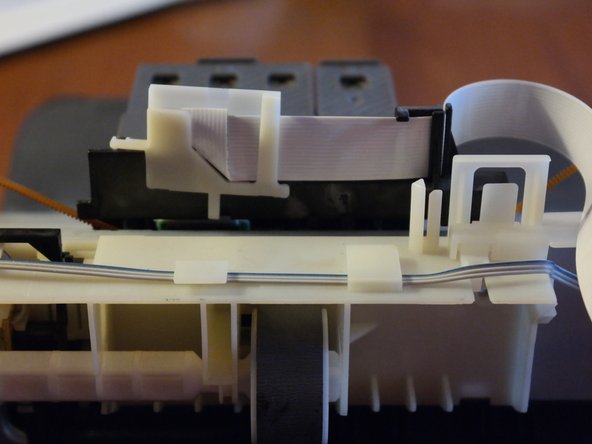

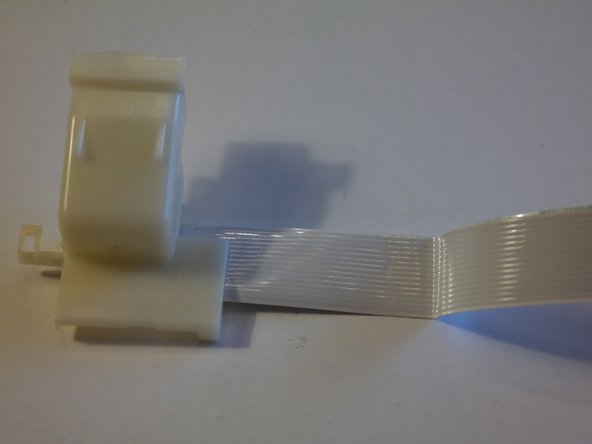

  • گیره پلاستیکی که کابل نواری را در موقعیت تا نگهداشته است.
بخوانید  نحوه هک کردن پد جوهر زائد L200 اپسون

The plastic clip that holds the dual ribbon cable in a folded position.The plastic clip that holds the dual ribbon cable in a folded position.The plastic clip that holds the dual ribbon cable in a folded position.

مرحله 23

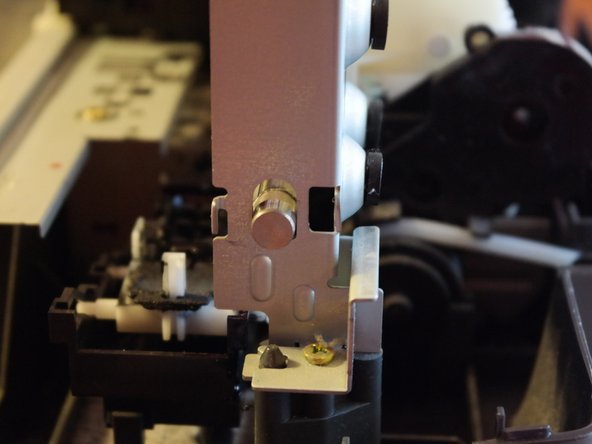

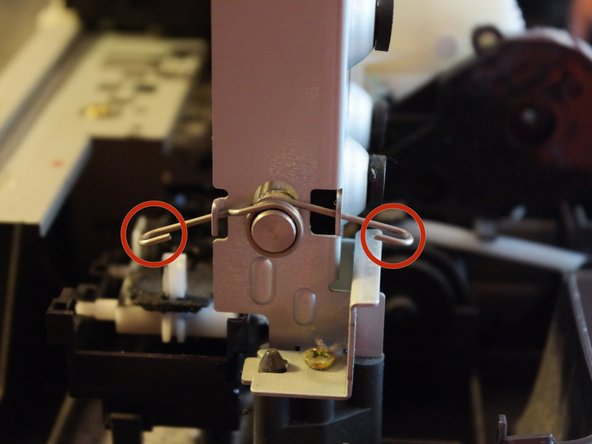

  • محور اصلی/ میله/ سینی فلزی گرد با گیره های فنری محکم شده اند.

The main axle/rod/shaft/round metal thingy is held in by spring clips.The main axle/rod/shaft/round metal thingy is held in by spring clips.

مرحله 24

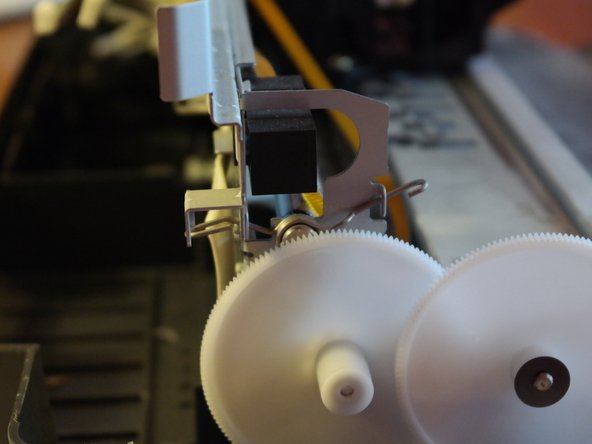

  • سمت دیگر دستگاه.

The other side.The other side.The other side.

مرحله 25

  • اکنون میله می تواند از پرینتر خارج شود.

The rod can now be extracted from the printer.The rod can now be extracted from the printer.

مرحله 26

  • اکنون که میله برداشته شده است، هد پرینت می تواند از تسمه درایو آزاد شود.

Now that the rod has been removed, the print head can be unhooked from the drive belt.Now that the rod has been removed, the print head can be unhooked from the drive belt.Now that the rod has been removed, the print head can be unhooked from the drive belt.

مرحله 27

  • هد پرینت.
  • 6 خط روی هد پرینت که در دومین و سومین تصویر قابل دید هستند در واقع ردیف هایی از نازل های جوهر میکروسکپی هستند.

The print headThe six lines on the print head visible in the second and third pictures are actually rows of microscopic ink nozzles.The six lines on the print head visible in the second and third pictures are actually rows of microscopic ink nozzles.

مرحله 28

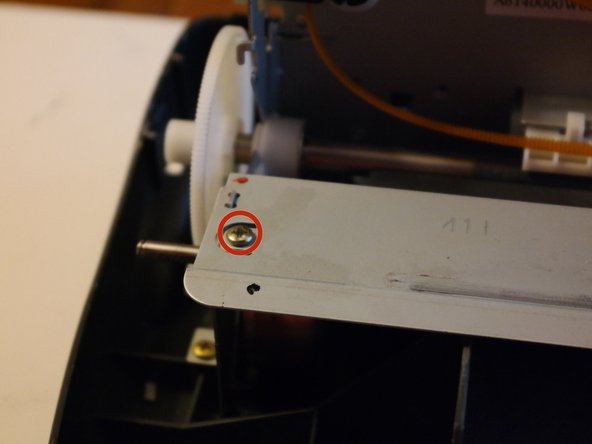

  • میله فلزی غیرعادی در مسیر فید کاغذ با دو پیچ محکم شده است.

An unusual metal bar in the paper feed path is held in by two screws.An unusual metal bar in the paper feed path is held in by two screws.An unusual metal bar in the paper feed path is held in by two screws.

مرحله 29

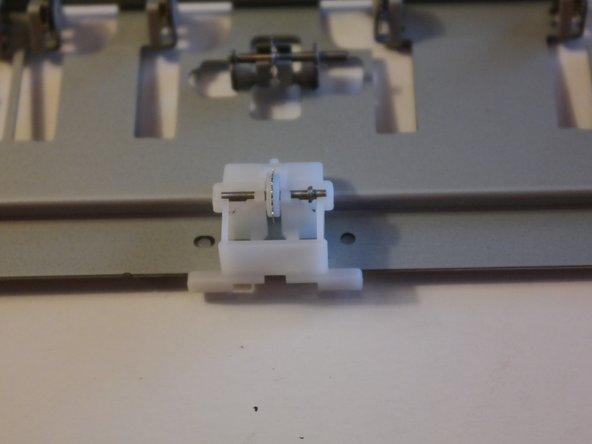

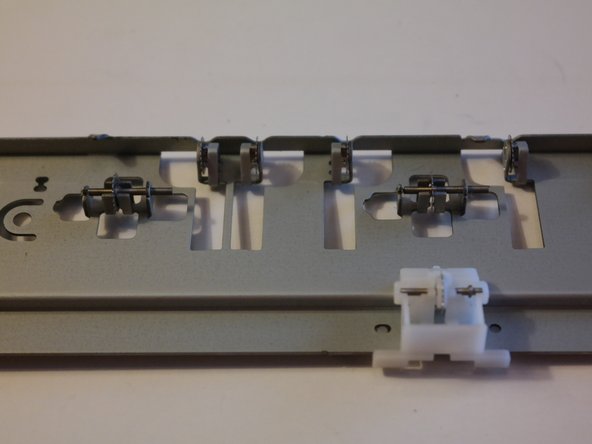

  • نوار فلزی شامل چرخ های زیادی است که در فنرها می چرخد و آنها می توانند از مسیر فید خارج شوند.

The metal strip contains many spiked wheels rotating on springs which allow them to be pushed out of the feed path.Please comment if you know what this passive component does.

مرحله 30

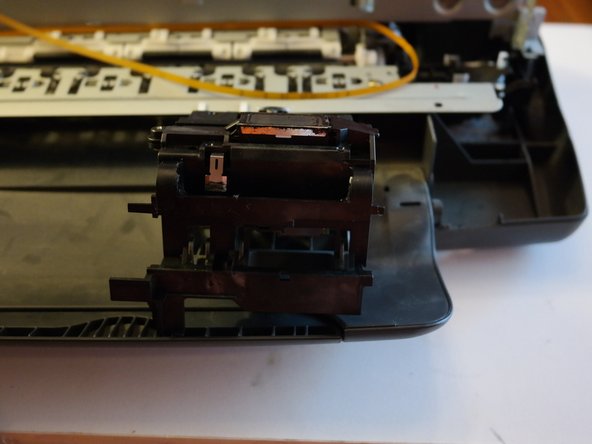

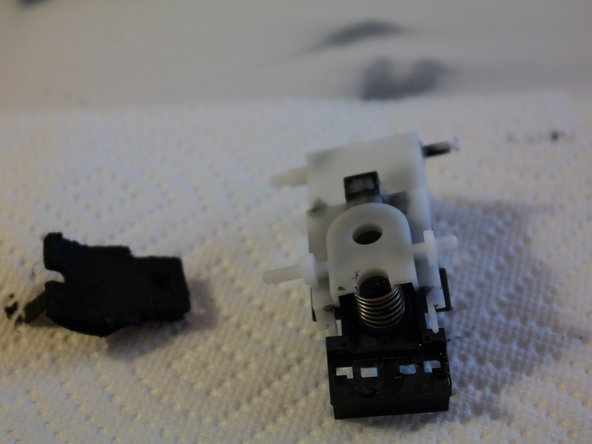

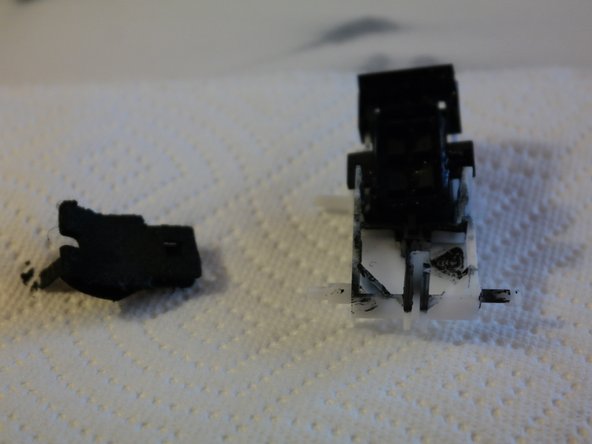

  • این شبکه جوهر یک پاک کننده نازل است.
  • این قطعه فنری است بنابراین نازل ها می توانند در پد فشرده شوند تا جوهر جمع شده و سپس به پد جوهر جاذب بزرگ منتقل شوند.

This inky mess is the nozzle cleaner.The assembly is spring loaded so the nozzles can be pushed into a pad to collect ink, which is then somehow transferred into the large absorbent ink pad.The assembly is spring loaded so the nozzles can be pushed into a pad to collect ink, which is then somehow transferred into the large absorbent ink pad.

مرحله 31

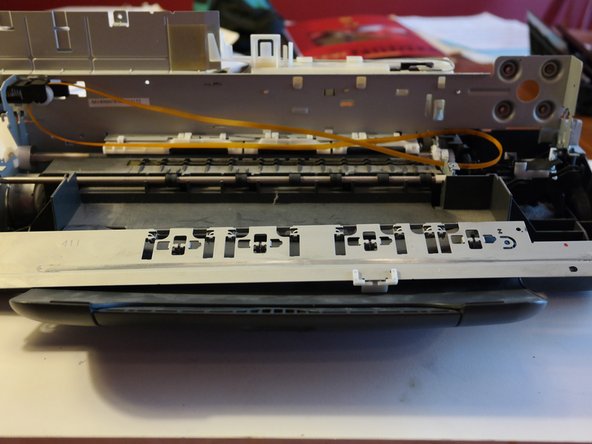

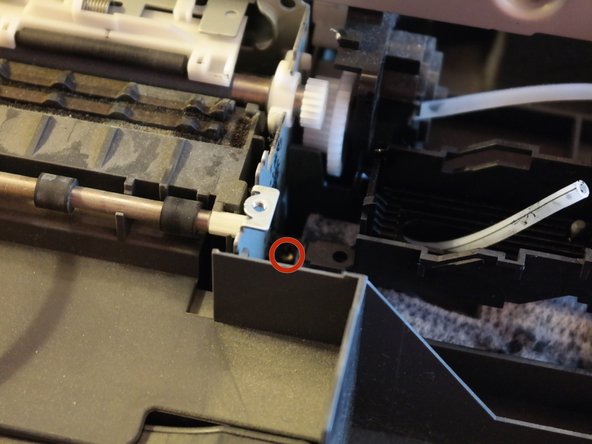

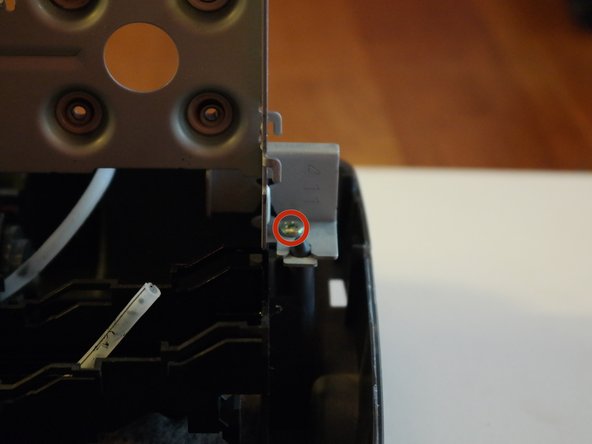

  • برای برداشتن فریم میانی فلزی پرینتر، سه پیچ باید برداشته شوند.

To remove the metal midframe of the printer, three screws must be removed.To remove the metal midframe of the printer, three screws must be removed.To remove the metal midframe of the printer, three screws must be removed.

مرحله 32

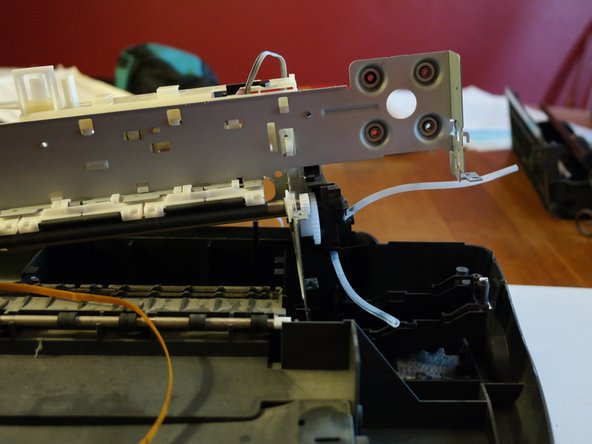

  • اکنون فریم میانی می تواند از پرینتر بلند شود.

The midframe can now be lifted out of the printer.

مرحله 33

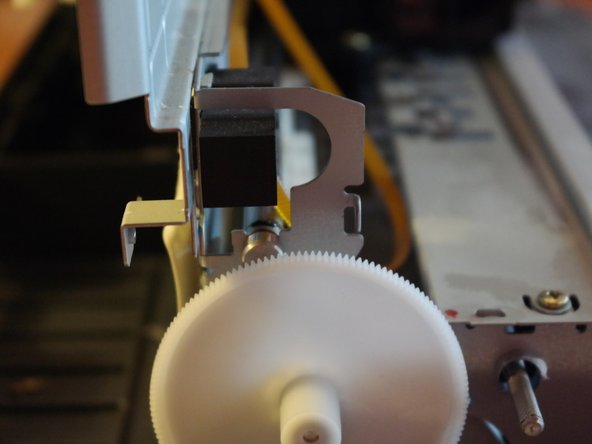

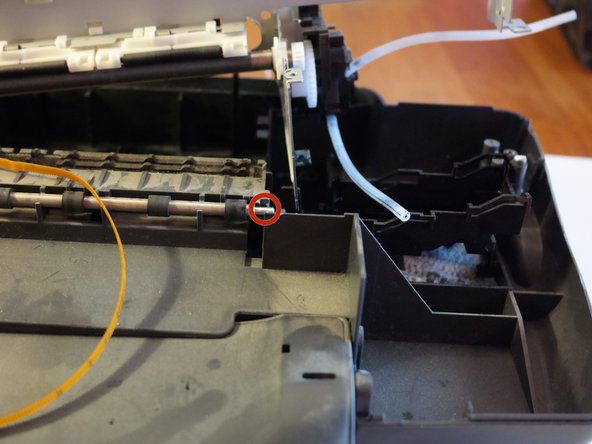

  • پس از برداشتن دنده، دیگر میله فلزی می تواند برداشته شود.

After removing a gear, another metal rod can be removed.After removing a gear, another metal rod can be removed.

مرحله 34

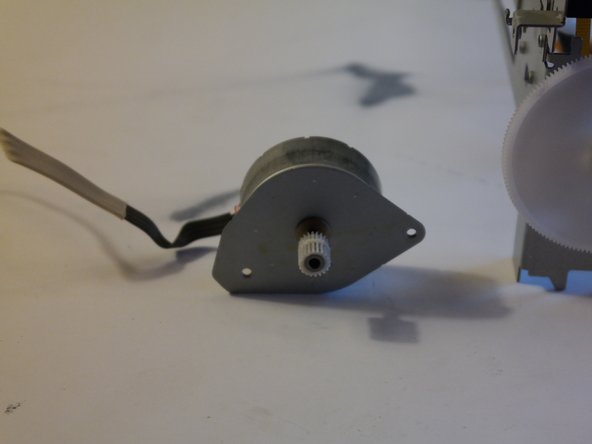

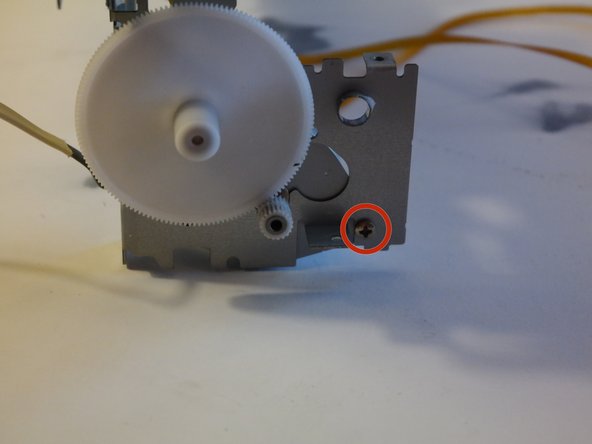

  • پس از برداشتن پیچ، دومین موتور استپر می تواند برداشته شود.

After removing another screw, the second stepper motor can be removed.After removing another screw, the second stepper motor can be removed.After removing another screw, the second stepper motor can be removed.

مرحله 35

  • چرخ کششی و تسمه درایو می توانند با فشردن آنها به خارج از قطعه کششی برداشته شوند.

The tensioner wheel and drive belt can be removed by pushing it down out of the tensioner.The tensioner wheel and drive belt can be removed by pushing it down out of the tensioner.

مرحله 36

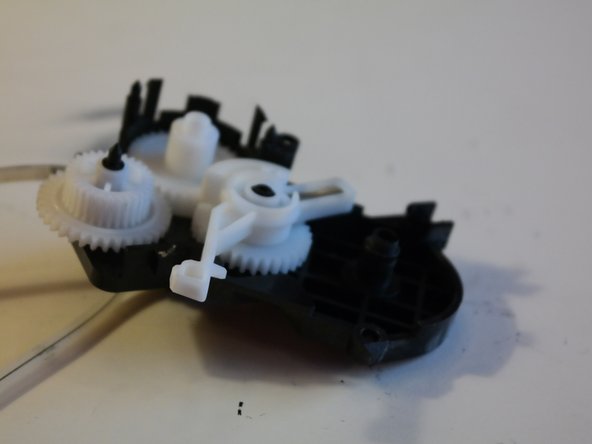

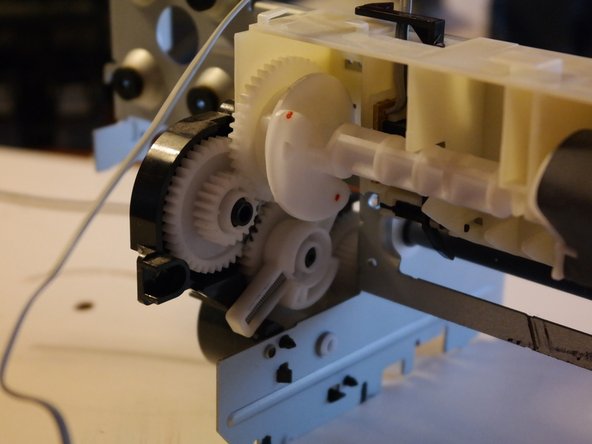

  • جعبه دنده باید برداشته شود.

The gearbox is going to be the next thing to be removed...The gearbox is going to be the next thing to be removed...

مرحله 37

  • جعبه دنده باعث حرکت فید کاغذ و پروسه های تمیزکاری نازل از یک موتور می شود.
بخوانید  پیاده کردن روکش دوربین اپسون

The gearbox drives the paper feed and the nozzle cleaning processes all from one motor.The gearbox drives the paper feed and the nozzle cleaning processes all from one motor.The gearbox drives the paper feed and the nozzle cleaning processes all from one motor.

مرحله 38

  • پمپ می تواند جوهر را از پاک کننده نازل به پدهای جاذب بزرگ حرکت دهد.

A close look at the peristaltic pump used to move ink from the nozzle cleaner to the large absorbent pads.A close look at the peristaltic pump used to move ink from the nozzle cleaner to the large absorbent pads.A close look at the peristaltic pump used to move ink from the nozzle cleaner to the large absorbent pads.

مرحله 39

  • این چیزی است که مکانیسم فید کاغذ انجام نمی دهد. برد مدار شامل دو میکرو سوئیچ است که در صورتی تشخیص داده شده که کاغذ موجود باشد.

This is what is left of the paper feed mechanism. The circuit board contains two microswitches to detect if there is paper present.

مرحله 40

  • میله دیگر باید از پرینتر برداشته شود.
  • این میله در چیزی پوشانده شده است که به گرفتن بهتر کاغذ کمک می کند.

Another rod is removed from the printer.

مرحله 41

  • در نهایت، سه رولر فنری وجود دارد که باید از مکانیسم فید کاغذ برداشته شوند.

Lastly, here are the three spring-loaded rollers removed from the paper feed mechanism.

مرحله 42

  • موتور استپر اصلی قطعه ای است که احتمالا به آسانی برداشته می شود.
  • کارتریج های جوهر به آسانی قابل تعویض هستند.
  • بسیاری از قطعات داخلی پرینتر دارای جوهر هستند و تعمیر را دشوار می کند.
  • دیگر موتور استپر به سختی قابل دسترس بوده و مستلزم پیاده سازی اکثر پرینتر می باشد.
  • فریم میانی، که شامل جعبه دنده و دومین موتور استپر است، به کیس با گلوله های پلاستیکی جاذب متصل است که برای برداشتن آن باید جدا شوند.
  • کیس بدون شکستن دکمه ها به سختی باز می شود.

The main stepper motor, the part most likely to fail, is easy to remove.

مرحله 43

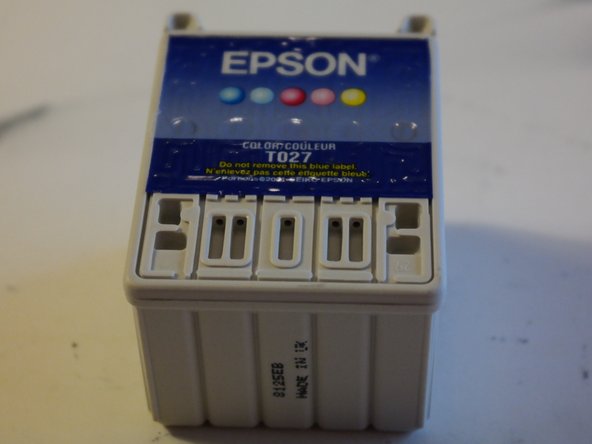

  • به علامت “برنداشتن برچسب” در زیر کارتریج جوهر دقت کنید.
  • این گذرگاه های پر پیچ و خم چیست؟

جواب این است که یک تونل مویرگی برای کاهش فشار جوهر می باشد.. ردیف پایین سوراخ ها به درون کارتریج منتهی شده، در حالی که ردیف بالا به به نازل های جوهر منتهی می شود .

Bonus Teardown Time!Time to see what is underneath the 'Do not remove' sticker located on the ink cartridge.
